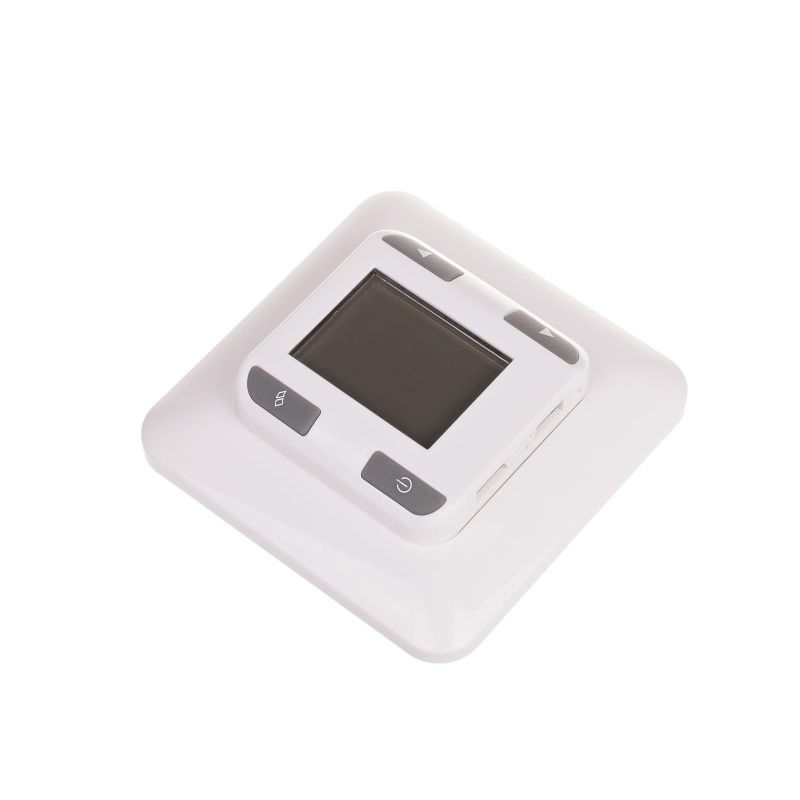

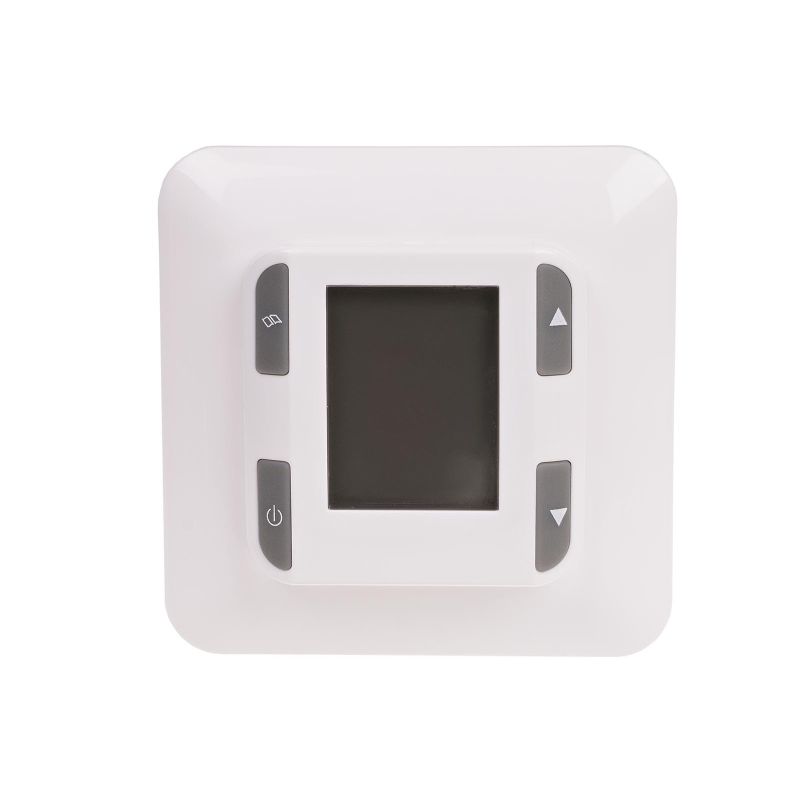

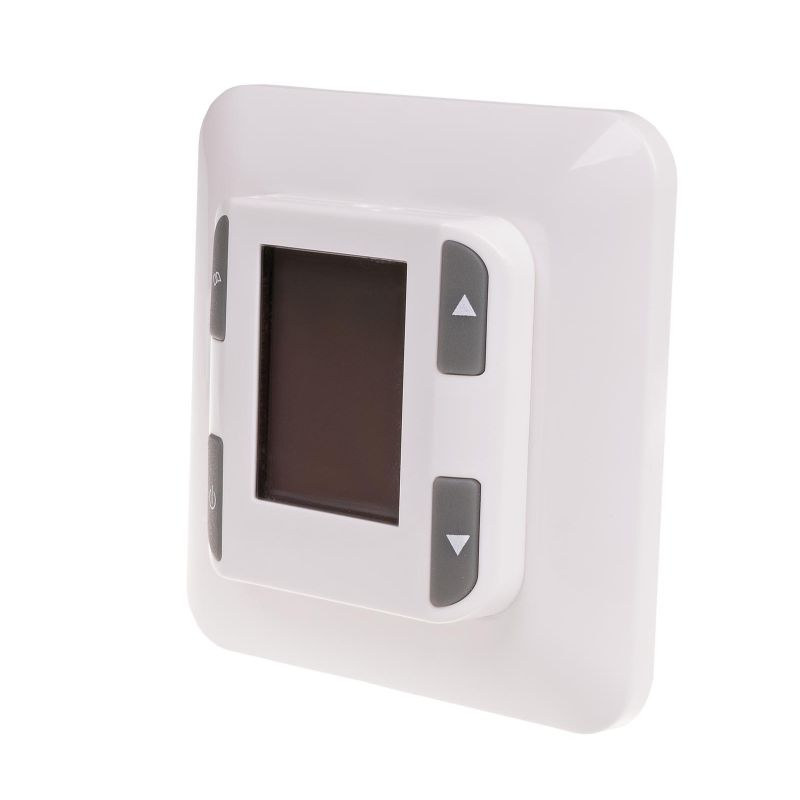

Programmable termostat – temperature regulator

Weekly programmer. Temperature range: 5÷60ºC.
RT-825  temperature regulator is designed for direct control of heating devices fed by a voltage of 230V, maximum current of less than 16A.

Functions
* the control panel enables programming and monitoring the device operation
* the breaker switch located on the front panel enables switching off the power supply of the whole heating system
* maintaining a preset temperature in accordance with programmed hours and days of the week
* possibility of programming 4 intervals of a required temperature per 24 hours
* 12 program entries: 4 entries concerning the required temperature for working days (Pn-Pt: Monday through Friday); 4 entries concerning the required temperature for Saturday (So: Saturday) and 4 entries concerning the required temperature for Sunday (Nd: Sunday)
* possibility of a quick, manual correction of the currently maintained temperature
* adjustable hysteresis
* 2 temperature sensors: an internal one and an external one
* 3 operation modes of the regulator: operation with the internal temperature sensor; operation with the external temperature sensor; operation with two temperature sensors
* in the mode of operation with two temperature sensors, the external sensor is the limiting one with an adjustable temperature within the range of 15÷50°C
Attention!

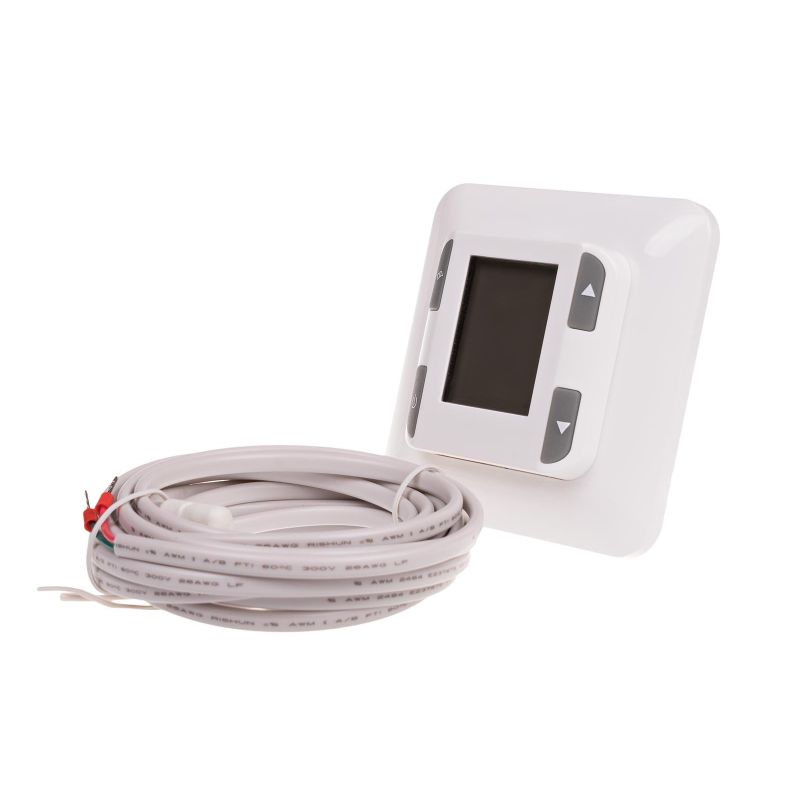

The probe is in set with temperature regulator.
