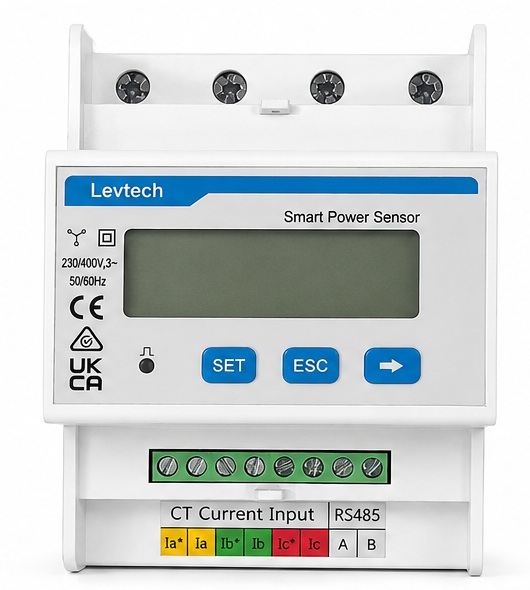

Levtech SM24 250A three-phase smart energy meter for Huawei
NEW PRODUCT
115,00 € excluding VAT
The Levtech SM24 250A smart energy meter for Huawei is a three-phase energy monitoring device designed for industrial and commercial electrical systems. It measures three-phase voltage and current through current transformers and provides reliable data communication via RS485.
- Three-phase measurement for 3-wire and 4-wire power systems
- Current measurement range up to 250 A
- Energy metering accuracy: Class 1 (±1%)
- RS485 communication with configurable baud rates up to 115200 bps
- DIN35 rail-mounted installation
- Supports Huawei inverters for compatible energy-monitoring applications
- CE certified, with RCM and UKCA certification
Ordering 10 units or more? Contact our sales team for a tailored volume pricing quote. Send us the product model and quantity you need to receive your best offer.
Delivery within 2-3 days across the EU and 7-10 days worldwide
*Delivery dates may change based on your quantity and delivery address.
All orders are delivered by DHL
Enjoy free worldwide shipping on orders over 500EUR
Accurate three-phase measurement. Reliable RS485 communication. Easy DIN-rail installation.
| THREE-PHASE | Measurement |
| 0–250 A | Current range |
| RS485 | Communication |
| CE | Certified |

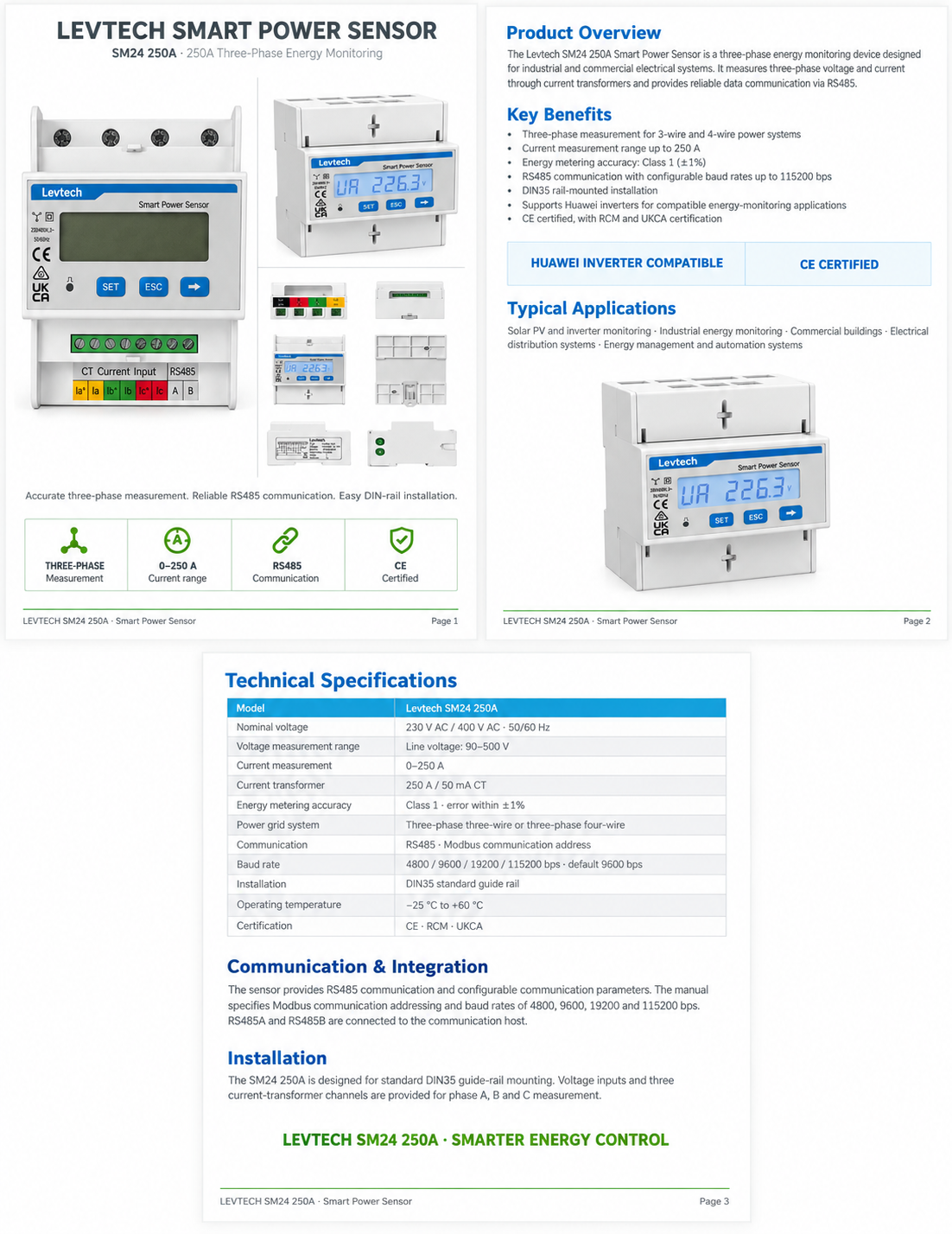

Product Overview
The Levtech SM24 250A three-phase smart energy meter for Huawei is a three-phase energy monitoring device designed for industrial and commercial electrical systems. It measures three-phase voltage and current through current transformers and provides reliable data communication via RS485.
Key Benefits
- Three-phase measurement for 3-wire and 4-wire power systems
- Current measurement range up to 250 A
- Energy metering accuracy: Class 1 (±1%)
- RS485 communication with configurable baud rates up to 115200 bps
- DIN35 rail-mounted installation
- Supports Huawei inverters for compatible energy-monitoring applications
- CE certified, with RCM and UKCA certification
HUAWEI INVERTER COMPATIBLE | CE CERTIFIED
Typical Applications
Solar PV and inverter monitoring · Industrial energy monitoring · Commercial buildings · Electrical distribution systems · Energy management and automation systems
Technical Specifications
| Model | Levtech SM24 |
| Nominal voltage | 230 V AC / 400 V AC · 50/60 Hz |
| Voltage measurement range | Line voltage: 90–500 V |
| Current measurement | 0–250 A |
| Current transformer | 250 A / 50 mA CT |
| Energy metering accuracy | Class 1 · error within ±1% |
| Power grid system | Three-phase three-wire or three-phase four-wire |
| Communication | RS485 · Modbus communication address |
| Baud rate | 4800 / 9600 / 19200 / 115200 bps · default 9600 bps |
| Installation | DIN35 standard guide rail |
| Operating temperature | −25 °C to +60 °C |
| Certification | CE · RCM · UKCA |
Communication & Integration
The sensor provides RS485 communication and configurable communication parameters. The manual specifies Modbus communication addressing and baud rates of 4800, 9600, 19200 and 115200 bps. RS485A and RS485B are connected to the communication host.
Installation
The SM24 is designed for standard DIN35 guide-rail mounting. Voltage inputs and three current-transformer channels are provided for phase A, B and C measurement.
