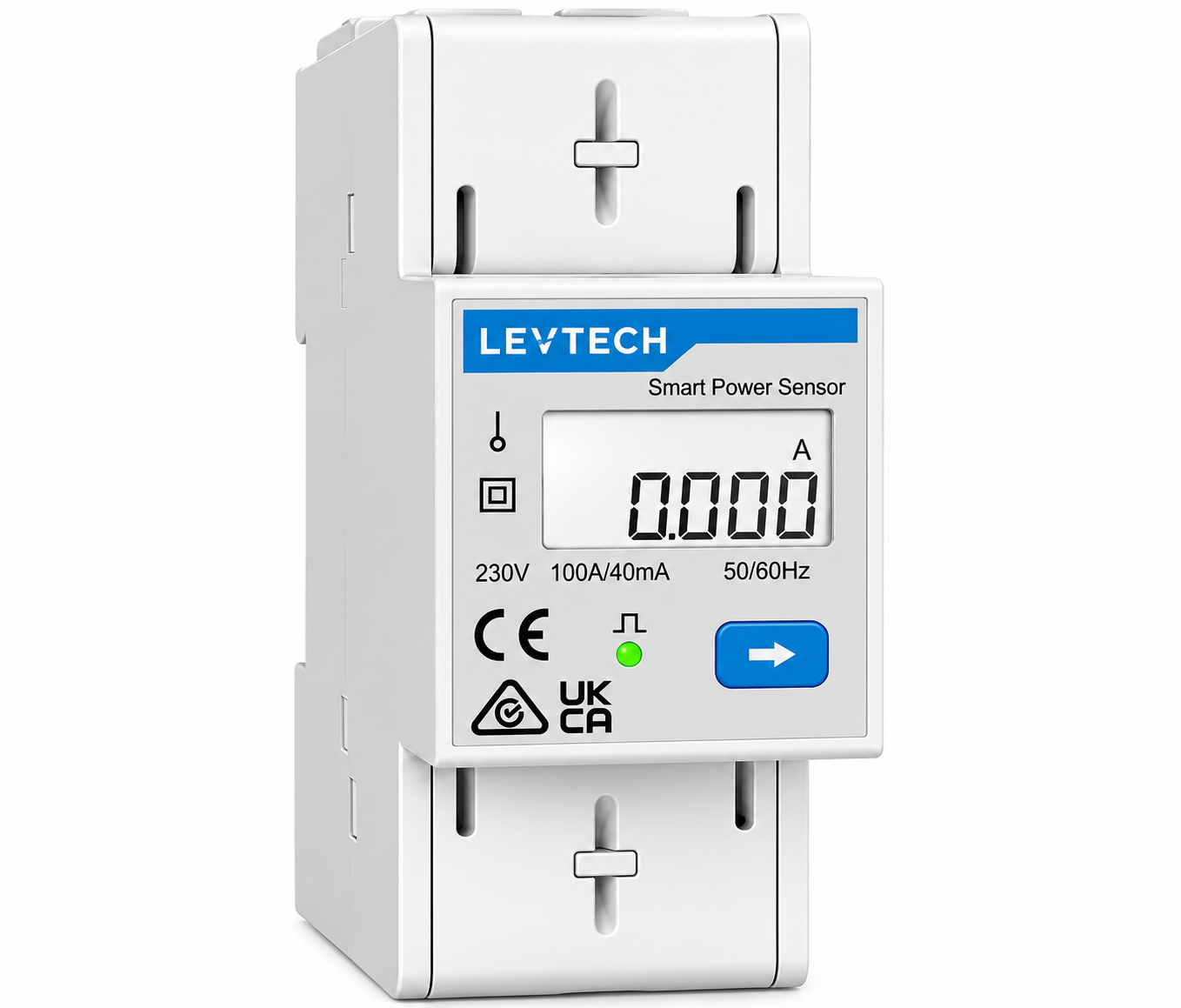

Levtech SM16 100A single-phase smart energy meter for Huawei

100A Single-Phase Energy Monitoring

Accurate measurement. Reliable RS485 communication. Easy DIN-rail installation.

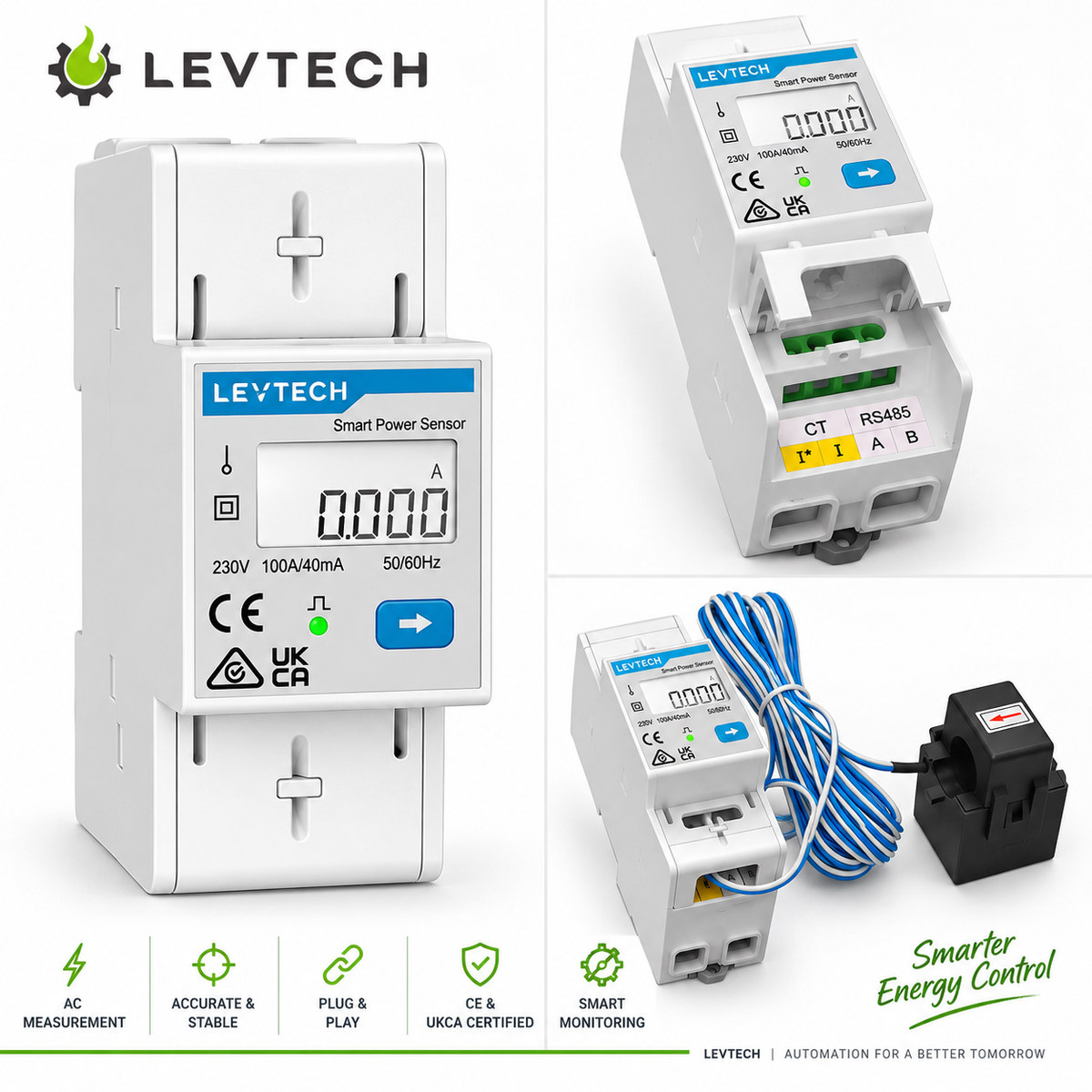

Cover highlights

• AC Measurement
• Accurate & Stable
• Plug & Play
• CE & UKCA Certified
• Smart Monitoring

KEY COMPATIBILITY & CERTIFICATION

• Supports Huawei inverters
• CE certified

Designed for reliable integration and compliant European-market use.

Levtech Smart Power Sensor

A compact smart power sensor designed for single-phase electrical measurement, energy monitoring and RS485-based communication. The device measures key electrical parameters locally and provides communication access for integration with monitoring, automation and inverter-related systems.

Key Features

• Single-phase 230 V AC measurement

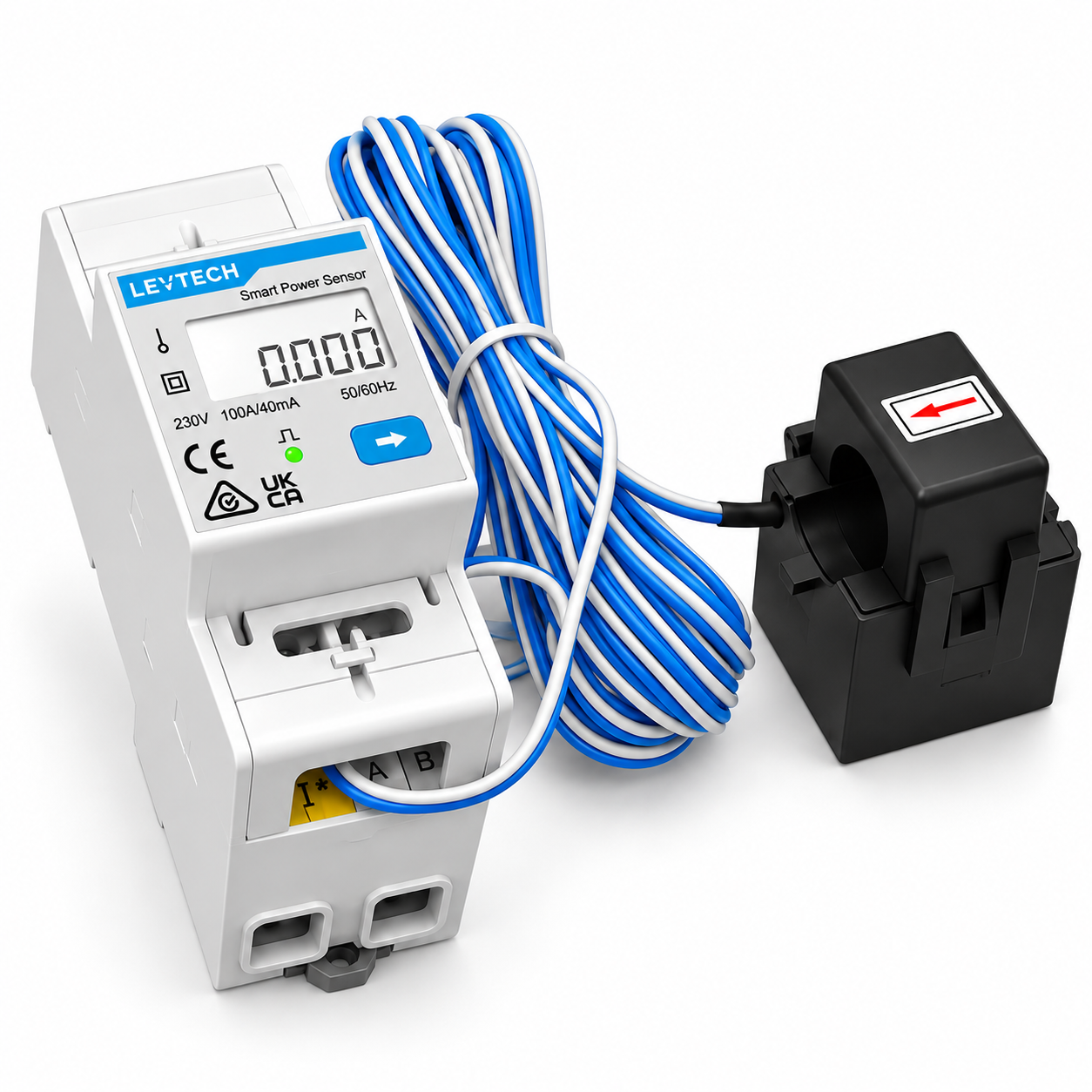

• Current measurement via external current transformer (CT) – included
• Current measurement range: 0–100 A
• Energy metering accuracy: Class 1 (±1%)
• RS485 communication for system integration
• DIN35 rail-mounted installation
• Configurable Modbus communication address and baud rate
• CE, RCM and UKCA certified

What It Measures

The display can show imported and exported active energy, combined active energy, active power, voltage, current, power factor and frequency.

Typical Applications

Suitable for energy monitoring and electrical automation applications where reliable measurement and RS485 communication are required. The sensor can be connected to a communication host and configured to match the host’s communication parameters.

Technical Specifications

RS485 Communication

RS485A and RS485B are used for communication with the host system. The communication address and baud rate can be configured through the device interface. The default communication settings are 9600 bps, 8 data bits, no parity and 1 stop bit.

Connection Overview

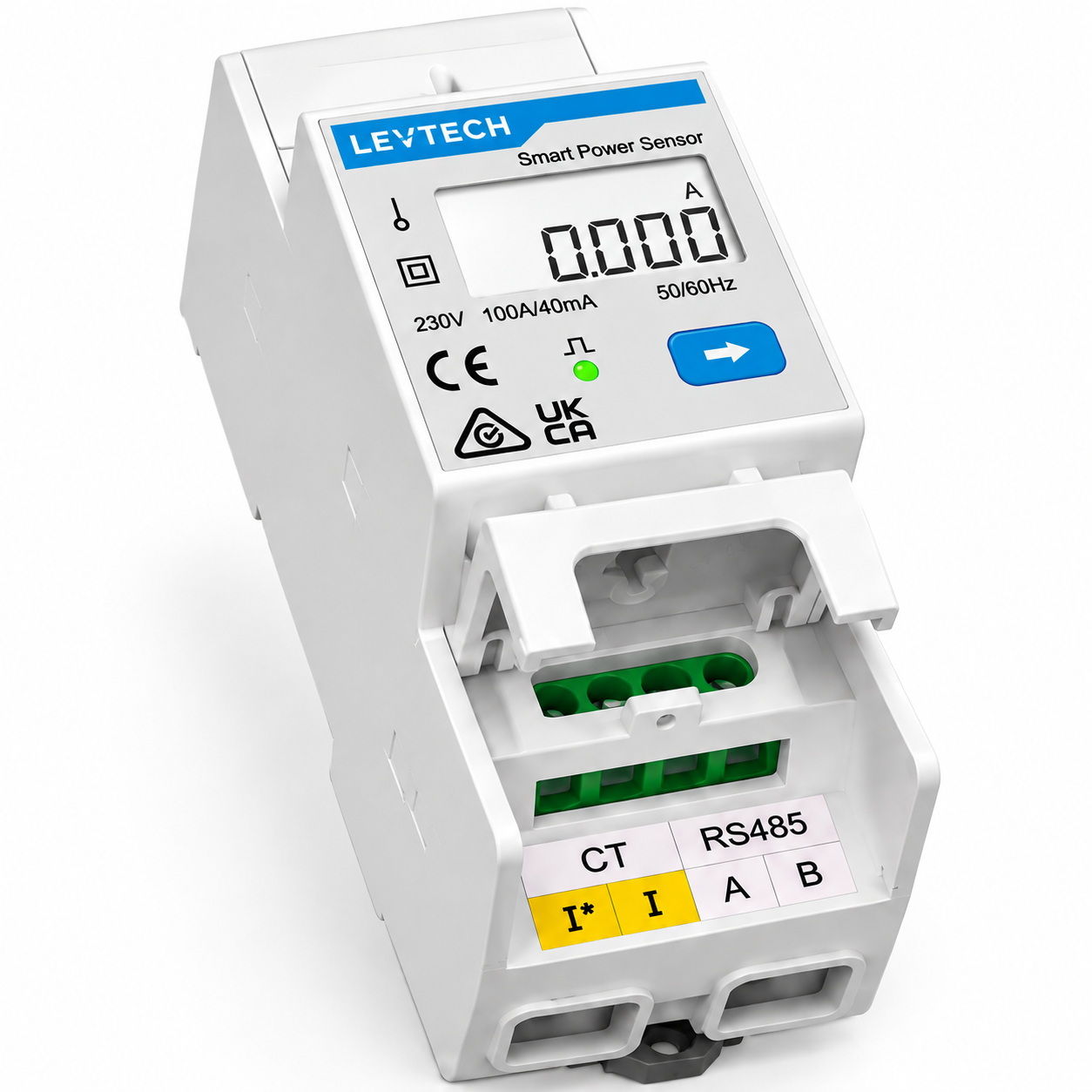

Voltage input: L/N  |  CT input: I*/I  |  Communication: RS485 A/B
